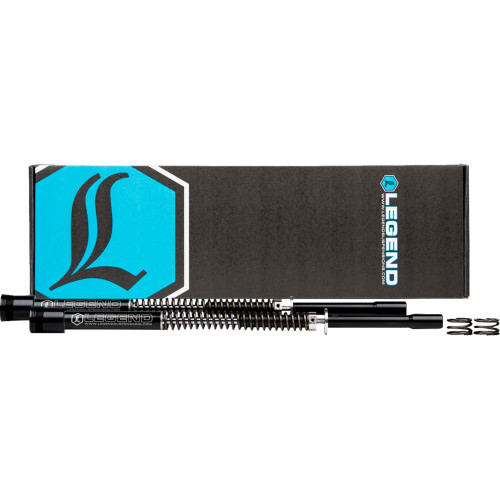

Legend Suspension AXEO for FL Touring 1" Lowered 2017-2025 Harley-Davidson FLHRXS Road King Special

Part Notes: Part #0414-0597 requires the use of Harley-Davidson upper fork tubes OEM #83804-09 (22.55" L). This product is not designed for use with 21" or 23" front wheels, refer to part #0414-0747. Does not fit '18-'22 FLTRXSE or '23-'24 FLHXSE/FLTRXSE/FLTRXSTSE models.

Features:

• Touring spring rate delivers improved rider comfort and chassis balance for a better connection to the road
• Specifically designed to reduce the factory ride height by one inch on FL touring models
• Offers a low stance and sure-footed confidence for shorter riders
• Improves ride quality, straight-line stability, high-speed corning, and maneuverability
• Increases resistance to bottoming out on large bumps or potholes
• Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range
• Reduces front-end dive and improves front tire traction during aggressive braking
• Designed for optimum performance with Legend's air ride or 12" coil rear suspensions
• Includes two 1" lowered mono-tube, dual chambered damper cartridges, and two top out springs
• Designed to be used with stock diameter front wheels
• For Stock Fork Tubes

Specifications:

• Product Name: Cartridge
• Color/Finish: Anodized / Black
• Length: One Inch Shorter Than Stock
• Model: AXEO (-1")
• Fork Tube Diameter: 49.00 mm
• Riding Style: Street
• Units: Pair
• Material: Billet Aluminum
• Type: Preload Adjustable Monotube

Fitment:
